Arduino Mega Pinbelegung

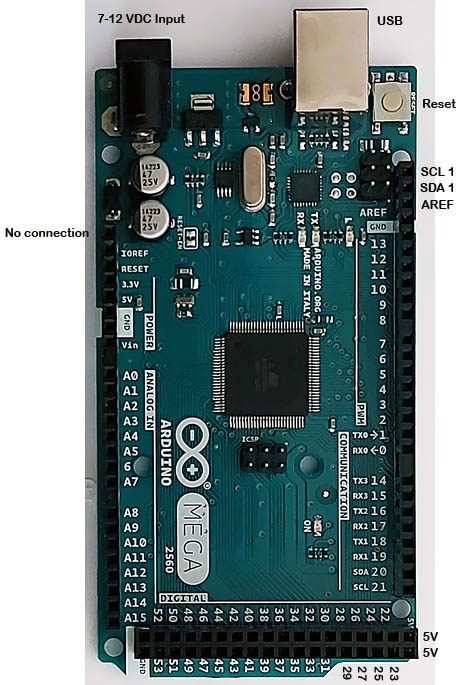

 Arduino Mega Pinbelegung
Pinbelegung:- IOREF – I/O Reference Voltage for shields
- RESET – Reset Input
- 3.3V – 3.3V Output (50 mA)
- 5V – 5V Output
- GND – Ground
- GND – Ground
- Vin – 7-12V Input
- A0 – Analog Pin 0 / Digital Pin 54
- A1 – Analog Pin 1 / Digital Pin 55
- A2 – Analog Pin 2 / Digital Pin 56
- A3 – Analog Pin 3 / Digital Pin 57
- A4 – Analog Pin 4 / Digital Pin 58
- A5 – Analog Pin 5 / Digital Pin 59
- A6 – Analog Pin 6 / Digital Pin 60
- A7 – Analog Pin 7 / Digital Pin 61
- A8 – Analog Pin 8 / Digital Pin 62
- A9 – Analog Pin 9 / Digital Pin 63
- A10 – Analog Pin 10 / Digital Pin 64
- A11 – Analog Pin 11 / Digital Pin 65
- A12 – Analog Pin 12 / Digital Pin 66
- A13 – Analog Pin 13 / Digital Pin 67
- A14 – Analog Pin 14 / Digital Pin 68
- A15 – Analog Pin 15 / Digital Pin 68
- SCL 1 – (I2C Serial Clock)
- SDA 1 – (I2C Serial Data)
- AREF – Analog Reference Voltage
- GND – Ground
- 13 – Digital Pin 13 / PWM
- 12 - Digital Pin 12 / PWM
- 11 - Digital Pin 11 / PWM
- 10 - Digital Pin 10 / PWM
- 9 - Digital Pin 9 / PWM
- 8 - Digital Pin 8 / PWM
- 7 - Digital Pin 7 / PWM
- 6 - Digital Pin 6 / PWM
- 5 - Digital Pin 5 / PWM
- 4 - Digital Pin 4 / PWM
- 3 - Digital Pin 3 / PWM
- 2 - Digital Pin 2 / PWM
- 1 - Digital Pin 1 / TX0, Serial Port 0 TXD
- 0 - Digital Pin 0 / RX0, Serial Port 0 RXD
- 14 - Digital Pin 14 / TX3, Serial Port 3 TXD
- 15 - Digital Pin 15 / RX3, Serial Port 3 RXD
- 16 - Digital Pin 16 / TX2, Serial Port 2 TXD
- 17 - Digital Pin 17 / RX2, Serial Port 2 RXD
- 18 - Digital Pin 18 / TX1, Serial Port 1 TXD
- 19 - Digital Pin 19 / RX1, Serial Port 1 RXD
- 20 - Digital Pin 20 / I2C SDA
- 21 - Digital Pin 21 / I2C SCL
- 5V – 5V Output
- 5V – 5V Output
- 22 – Digital Pin 22
- 23 – Digital Pin 23
- 24 – Digital Pin 24
- 25 – Digital Pin 25
- 26 – Digital Pin 26
- 27 – Digital Pin 27
- 28 – Digital Pin 28
- 29 – Digital Pin 29
- 30 – Digital Pin 30
- 31 – Digital Pin 31
- 32 – Digital Pin 32
- 33 – Digital Pin 33
- 34 – Digital Pin 34
- 35 – Digital Pin 35
- 36 – Digital Pin 36
- 37 – Digital Pin 37
- 38 – Digital Pin 38
- 39 – Digital Pin 39
- 40 – Digital Pin 40
- 41 – Digital Pin 41
- 42 – Digital Pin 42
- 43 – Digital Pin 43
- 44 – Digital Pin 44 / PWM
- 45 – Digital Pin 45 / PWM
- 46 – Digital Pin 46 / PWM
- 47 – Digital Pin 47
- 48 – Digital Pin 48
- 49 – Digital Pin 49
- 50 – Digital Pin 50 / SPI MISO
- 51 – Digital Pin 51 / SPI MOSI
- 52 – Digital Pin 52 / SPI SCK
- 53 – Digital Pin 53 / SPI SS
- GND – Ground
- GND – Ground
